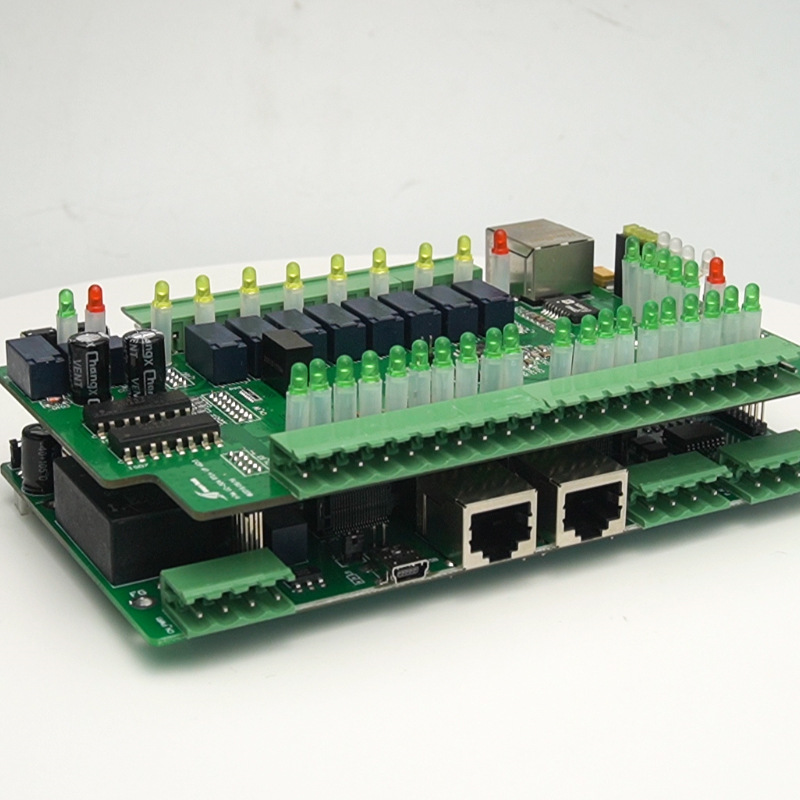

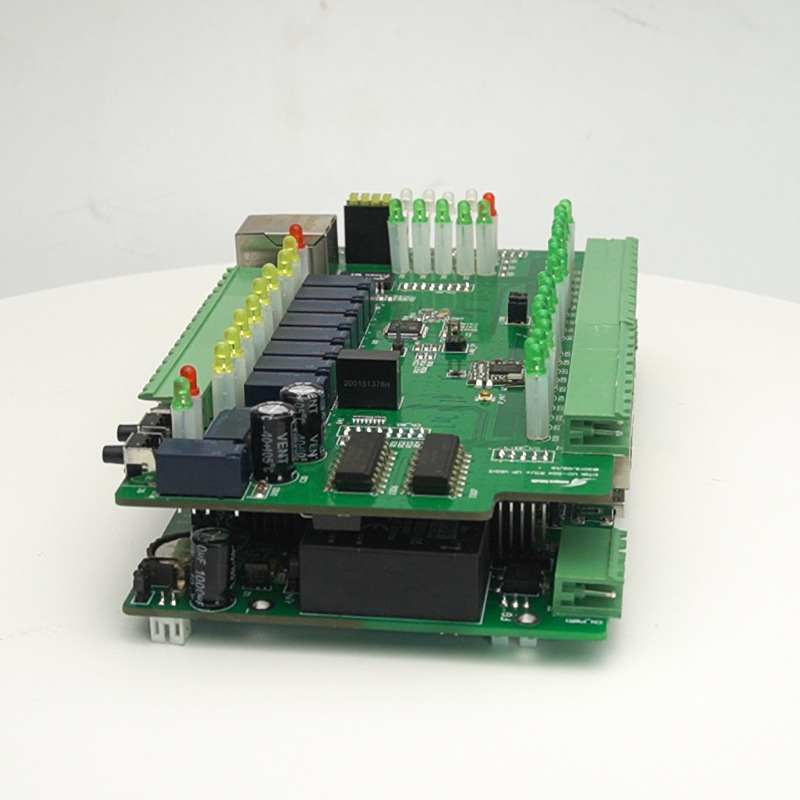

Oder Quick Turn PCB Prototype Assembly

 Tip: Click on the image to enlarge it

Item

Speci.

PCB SMT Min thickness

T<0.1mm

PCB SMT Max thickness

T>4.5mm

PCB SMT Min Length

L≥3mm,

PCB SMT Min Width

W≥3mm

PCB SMT Max Length

L > 1200mm

PCB SMT Max Width

W> 500mm

Min panel size

0.3mm*0.2mm

Max panel size

200mm*125mm<SMD

component thickness

6.5mm<T≤15mm

Min pin space

0.3mm≤Pitch<0.4mm

Min ball space

0.3mm≤Pitch<0.5mm

PCB DIP Min thickness

T<0.8mm

PCB DIP Max thickness

T>2mm

PCB DIP Min Length

L≥50mm

PCB DIP Min Width

W≥30mm

PCB DIP Max Length

L≥1200mm

PCB DIP Max Width

W≥500mm

Inter package

Vacuum/ Antistatic Bag

Outer package

Carton

SMT capacity

Four Million point/day
